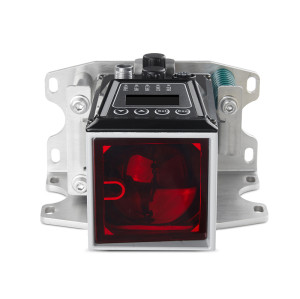

For Acuity Laser AR1000 Laser Distance Sensor Replacement | 150 m Measuring Range with a Retroreflective Target
- Model
- AR1000 Series | AR1000
Item specifics
- Series:
- AR1000 Series
- Measuring range:
- 0.1 to 150 m
- Light spot size:
- 5.1 mm, 0.6 mrad divergence
- Measurement accuracy:
- ± 3 mm
- Resolution:
- 1 mm
Review
Description
For Acuity Laser AR1000 Laser Distance Sensor Replacement | 150 m Measuring Range with a Retroreflective Target
| Brand | From network | DADISICK | ||
| Models | AR1000 | DS-200 | ||
Measuring range | 0.1 to 150 m Measuring Range with a Retroreflective Target | MAX. 200 m | ||
Light spot size | 5.1 mm, 0.6 mrad divergence | 245 mm (@200 m) | ||
Measurement accuracy | ± 3 mm | ±2 mm | ||
Repeatability | ≥ 0.5 mm | 1 mm | ||
Measurement frequency | 50 Hz maximum, or sample trigger (serial command and analog) | 1000 Hz | ||
Resolution | 1 mm | 0.1 mm | ||
Max. movement speed | — | 15 m/s | ||
Supply voltage | 10 - 30 Volts DC, 50 – 150 mA draw . (AR1000H 24W at 24VDC with heater) | DC 9 V ... 30 V | ||
Current consumption | 0.2 A at 12 V DC | |||
Laser class | Class 2, Complies with 21 CFR 1040.10 with Laser Notice 50, IEC/EN60825-1:2001 | Class 2 | ||
Light source | 650 nm, 1 mW visible RED | Red laser (visible light) | ||
Interface | Serial: RS232 full duplex, RS422 (optional) unterminated and terminated; Analog: 4-20 mA, limit switch | SSI, Ethernet 100BASE-TX (Data Transmission) | ||
Connection | (2 m) length, 12 conductor, Binder series 723 flange-mount connector, soldertail wire termination | M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI) | ||
Dimensions | — | 123 × 69.5 × 90 mm | ||
IP rating | IP65 | IP65 | ||
Operating temperature | -10 to 50 °C | -10℃~+55℃ | ||
